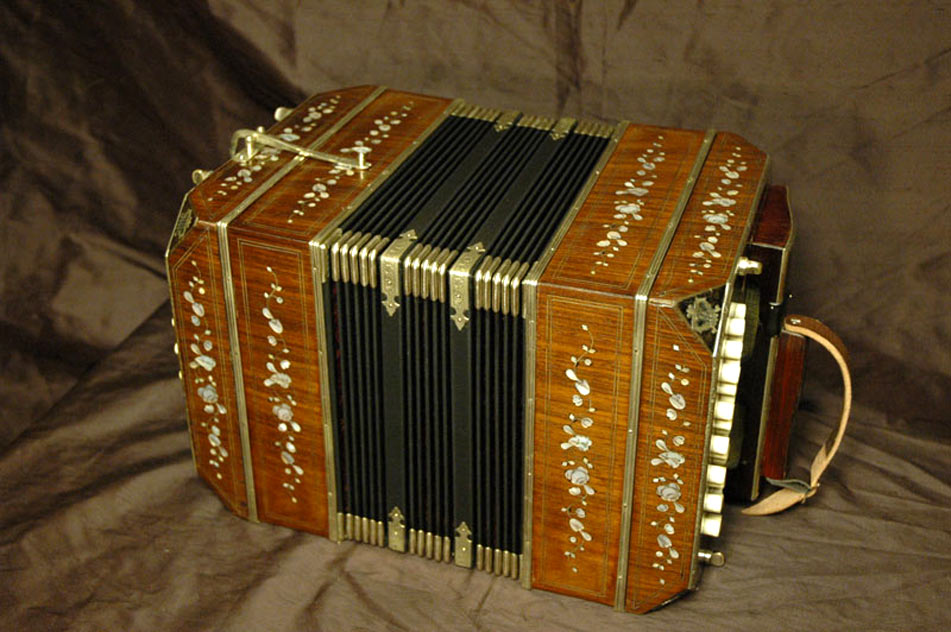

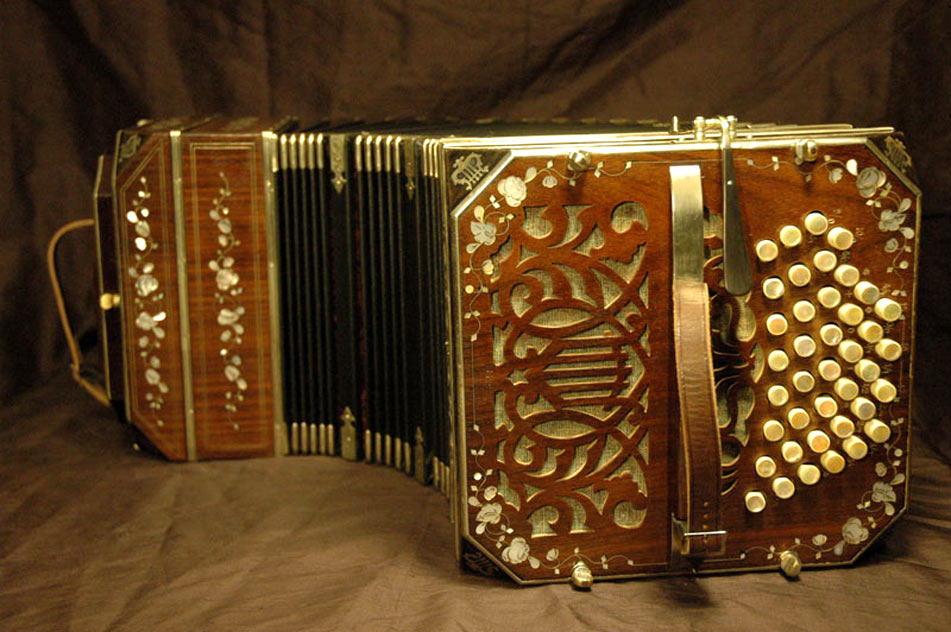

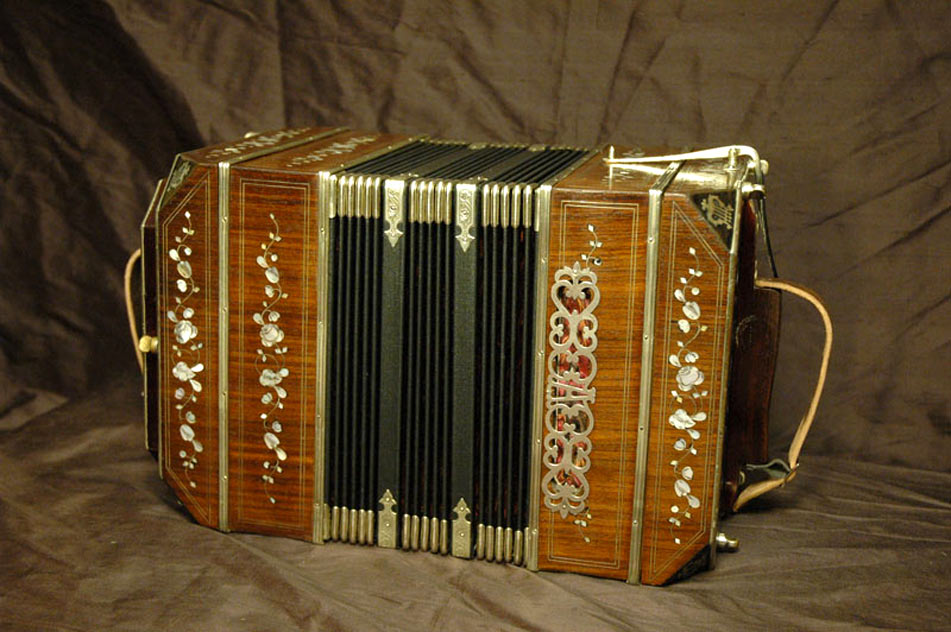

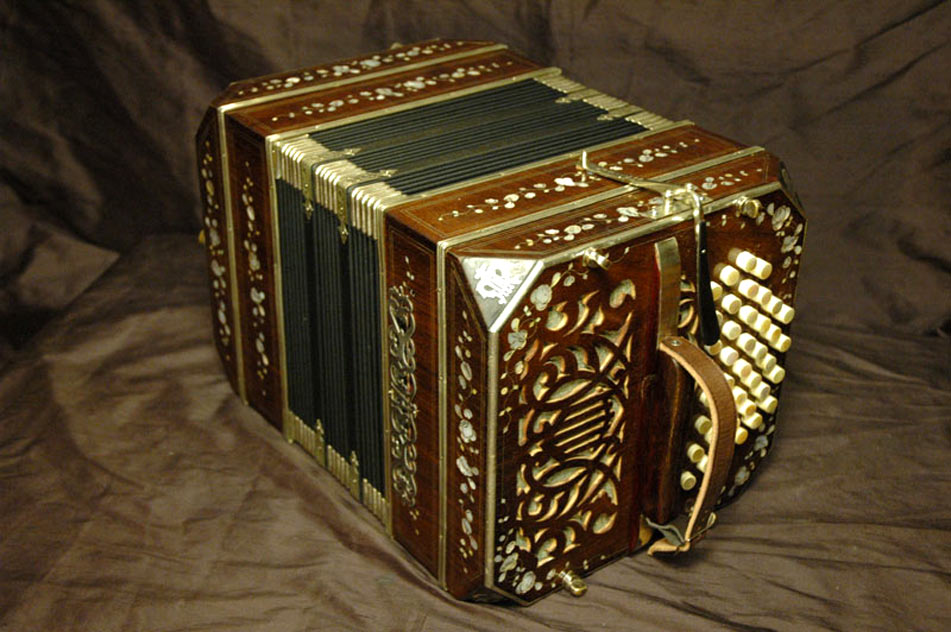

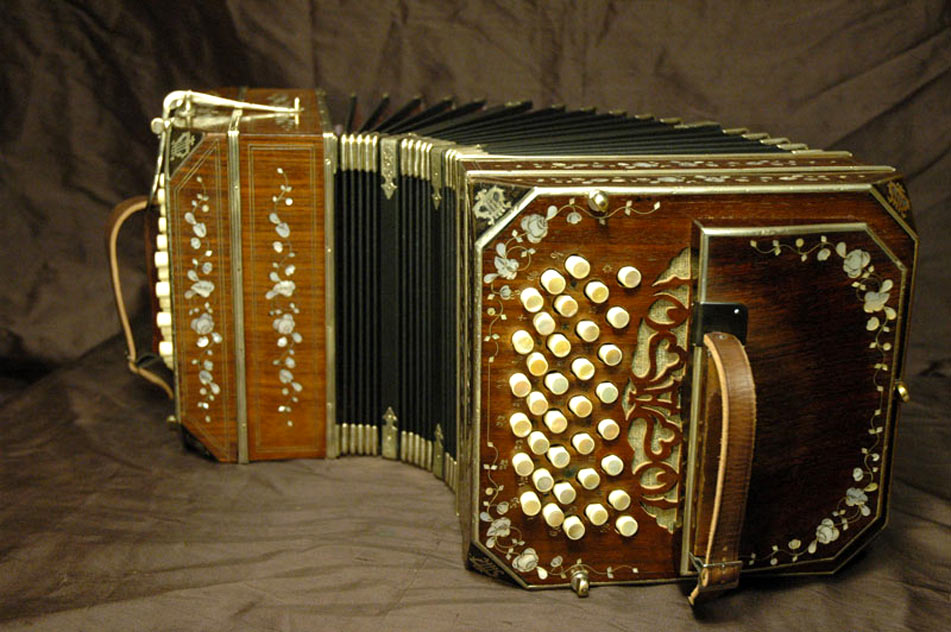

AA - Alfred Arnold - 152 - "Richard" - № 130508

Kundeninstrument - instrument of a client - instrumento de un cliente - instrument d´une client - strumento da un cliente
Ein seltenes Instrument. Es besitzt eine auf 152 Töne erweiterte Tastatur mit parallelen Stahlzungen auf durchgehenden Zinkstimmplatten. Diese Erweiterung ist original ab Werk von Alfred Arnold. Verschiedene Möglichkeiten der Knopfbelegung dieser erweiterten Tastatur sind möglich und frei wählbar ... mehr

Das Instrument wurde 2013 komplett von mir restauriert inkl. Stimmung mit neuen Ganzlederventilen, Mechanikrestaurierung und einem neuen Balg. Eine Besonderheit sind die von Hand gefertigten Zungen (a mano). Durch die Einpassung von Hand gestaltet ein Stimmsetzer die Ansprache und den Klang von Grund auf. Harmonische Übergänge der Töne trotz unterschiedlicher Zungengrößen können gestaltet werden.

... siehe auch "152-Tönig, die erweiterte Tastatur"
... siehe auch "Maschinenschliff und Handschliff. Was prägt die Eigenschaften meines Instrumentes?"
A rare instrument. It has a keyboard extended to 152 tones with parallel steel reeds on one piece zinc reed plates. This extension is original by Alfred Arnold. Different possibilities of this extended keyboard are possible and freely selectable ... see more

The instrument was completely restored by me in 2013 including new tuning with new all-leather valves (a / 442 Hz), mechanical restoration and a new bellow. The hand-made reeds (a mano) are a specialty. By fitting in by hand, a voice setter designs the response and the sound from scratch. Harmonious transitions of the tones despite different reed sizes can be designed.

... see also "152 notes, the extended keyboard"
... see also "Machine grinded and hand grinded reeds. What shapes the characteristic of my instrument?"

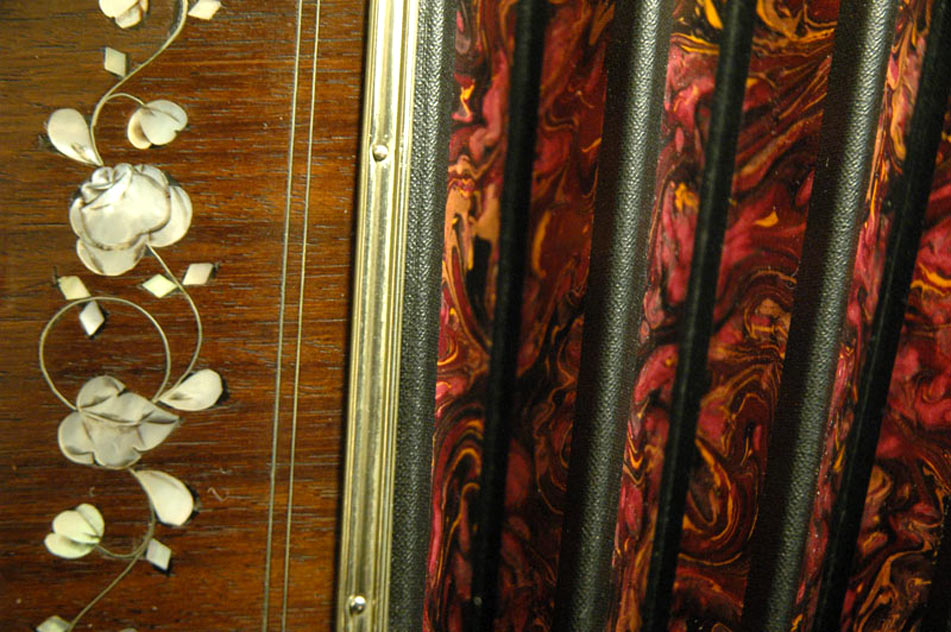

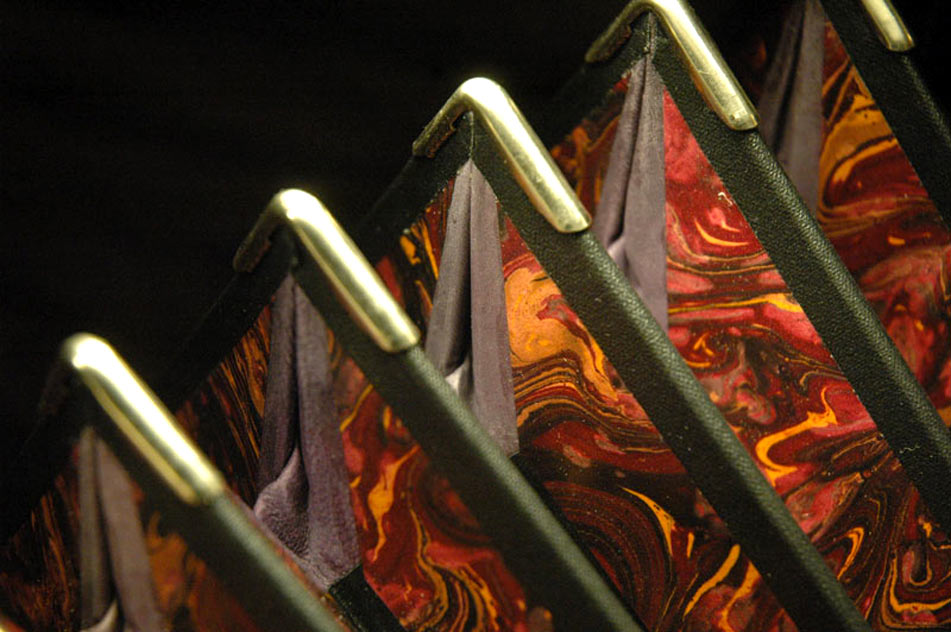

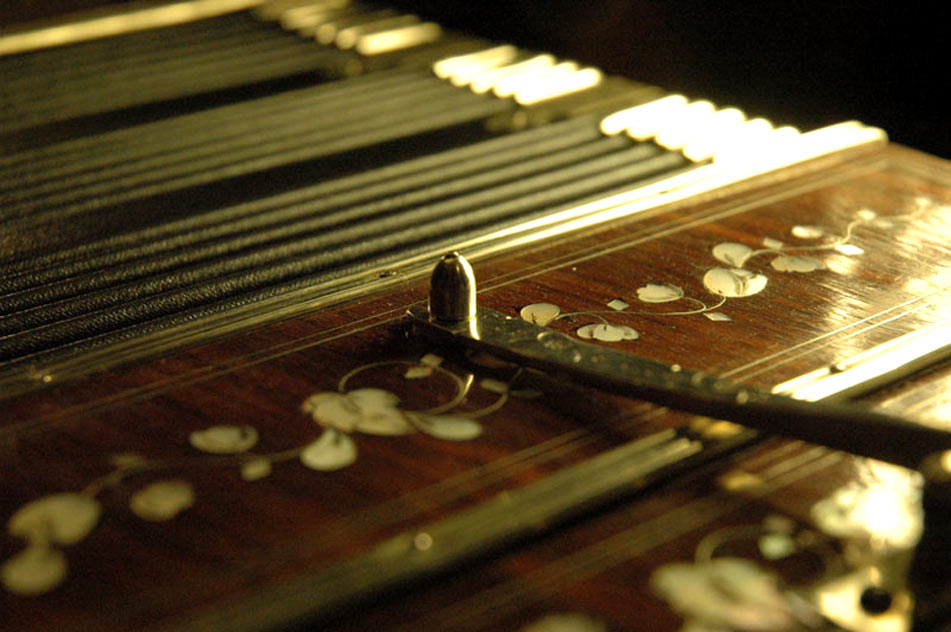

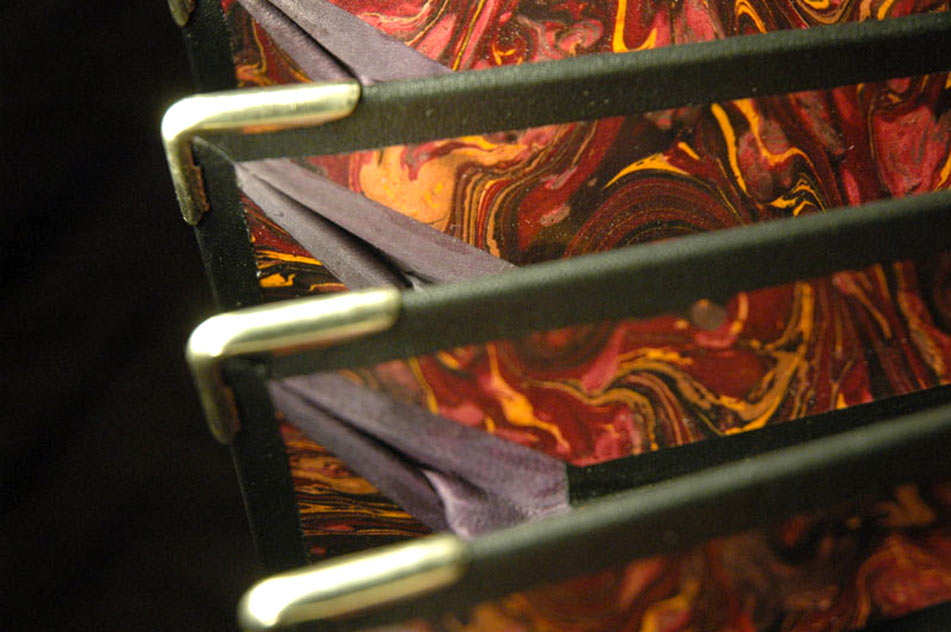

Neuer Balg
new bellow

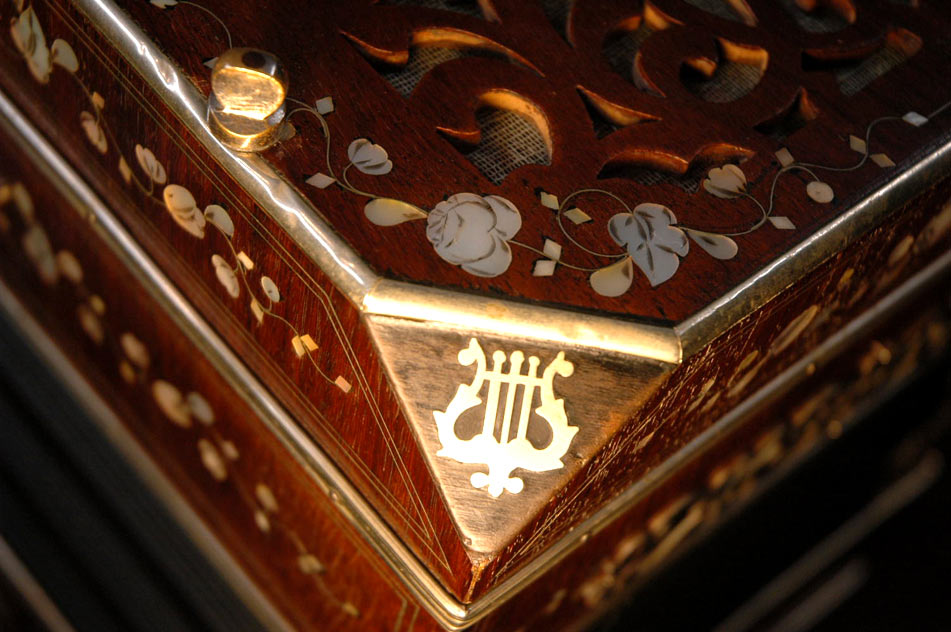

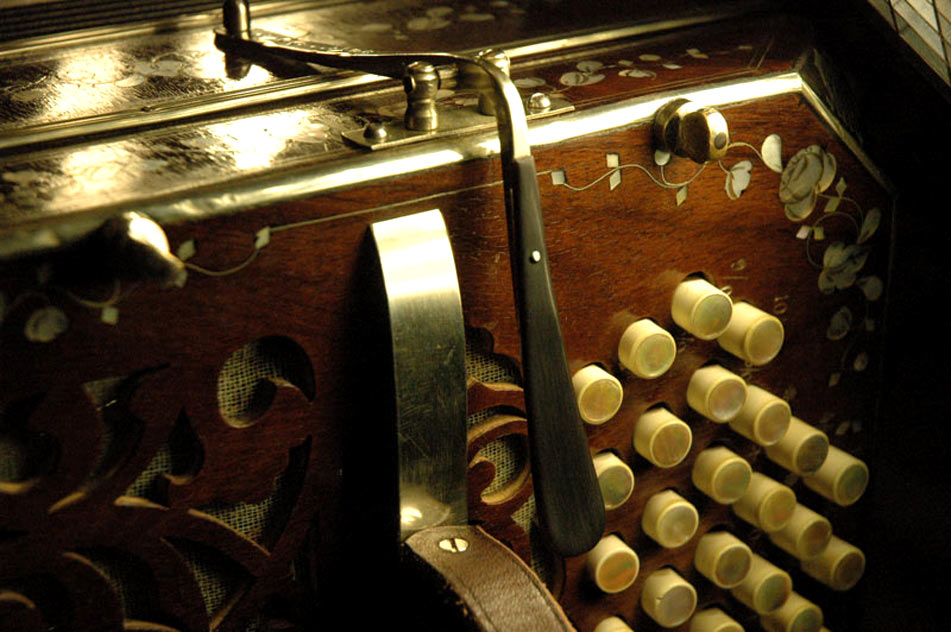

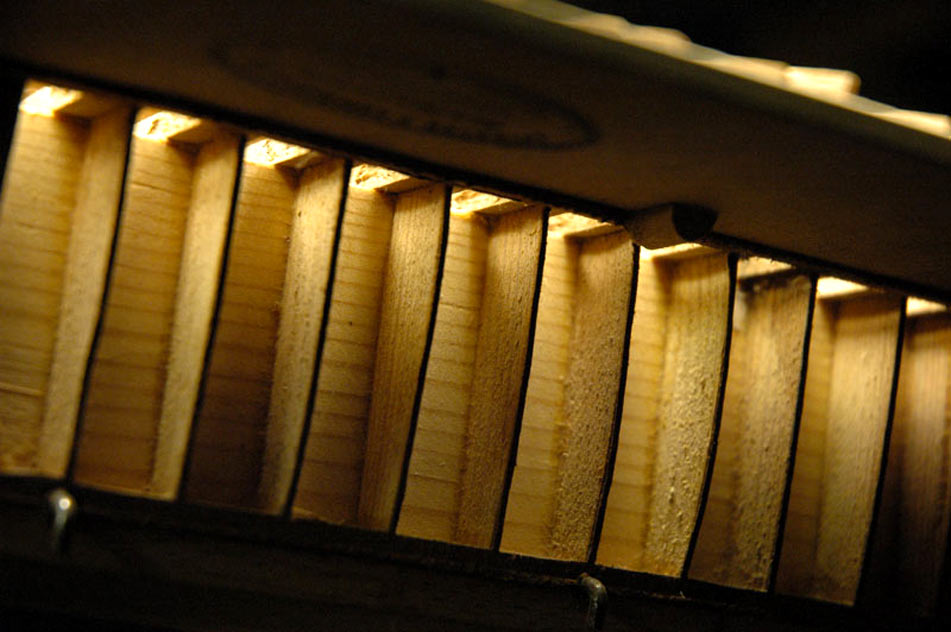

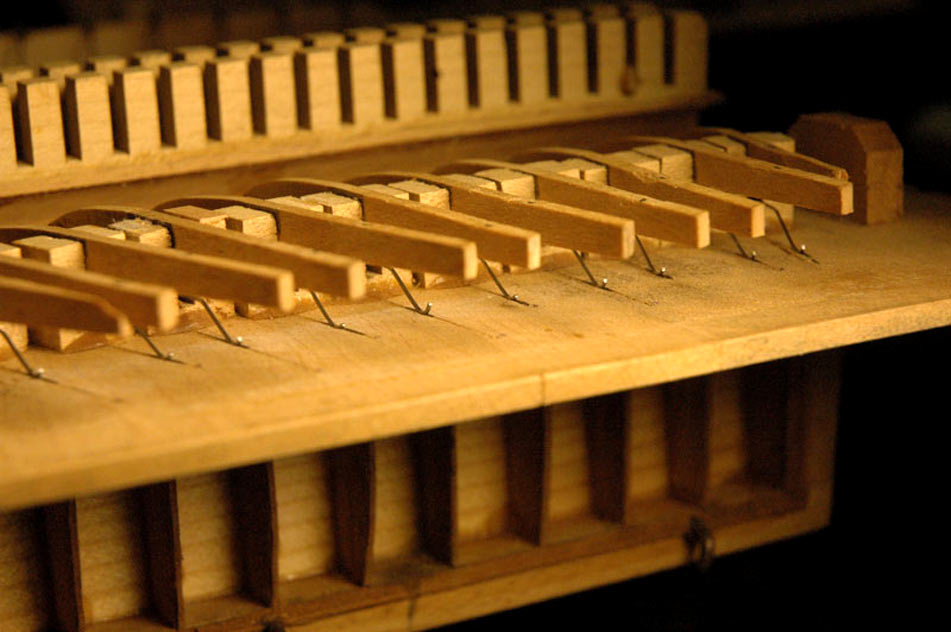

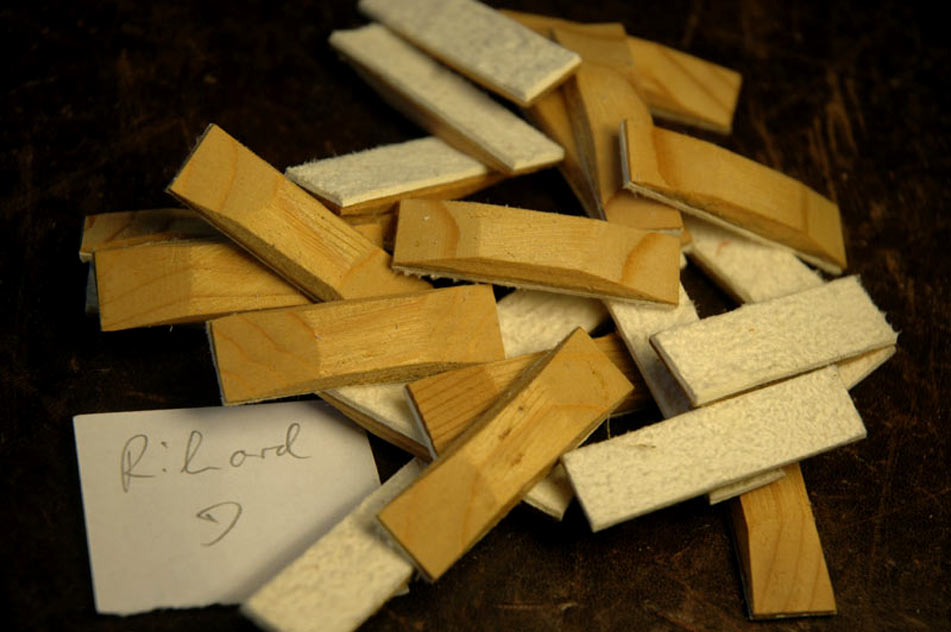

Restaurierung
restoration

Restaurierung
restoration

Restaurierung
restoration

Restaurierung
restoration

Restaurierung
restoration

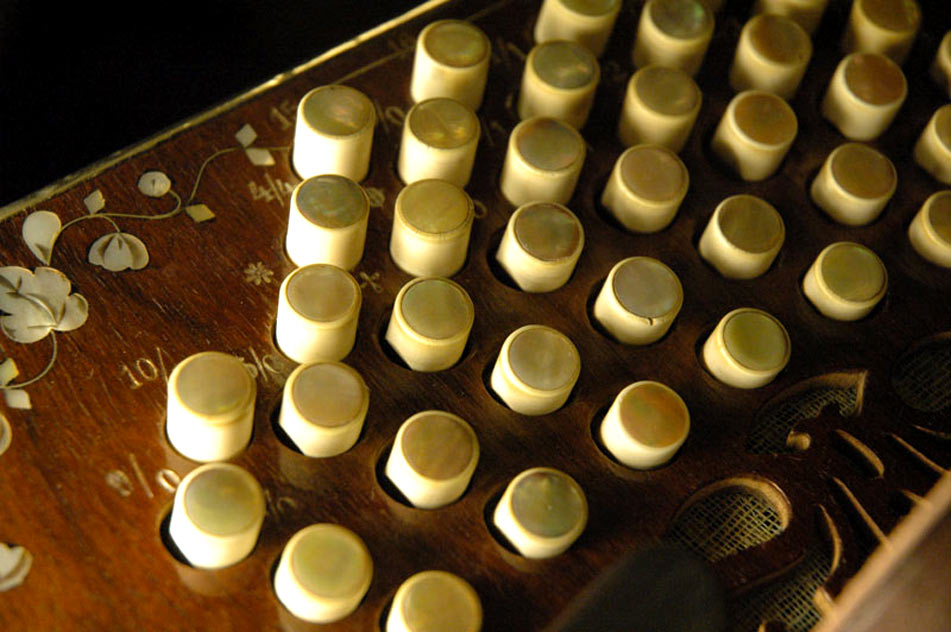

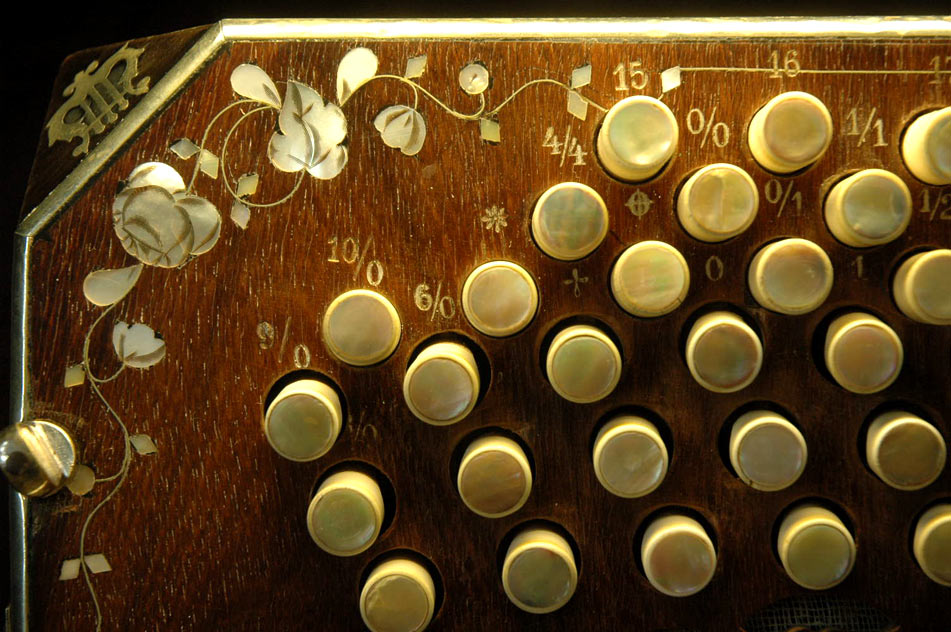

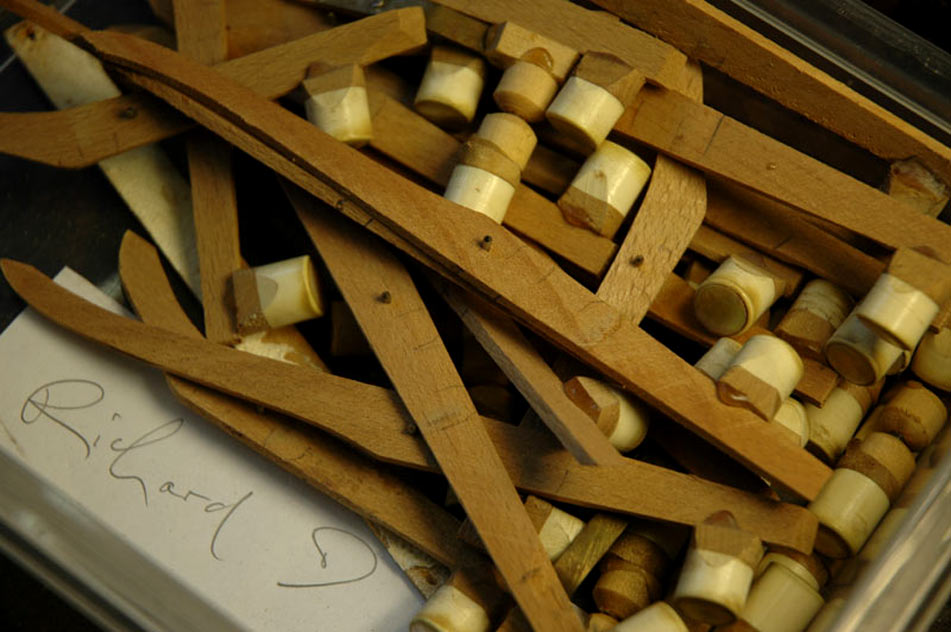

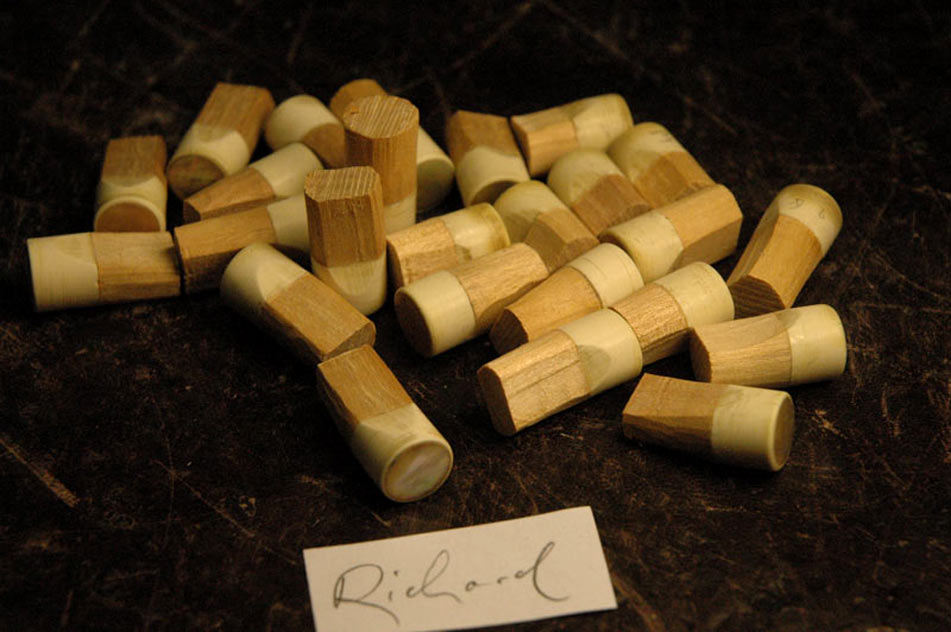

Restaurierung der originalknöpfe
restoration of the original buttons

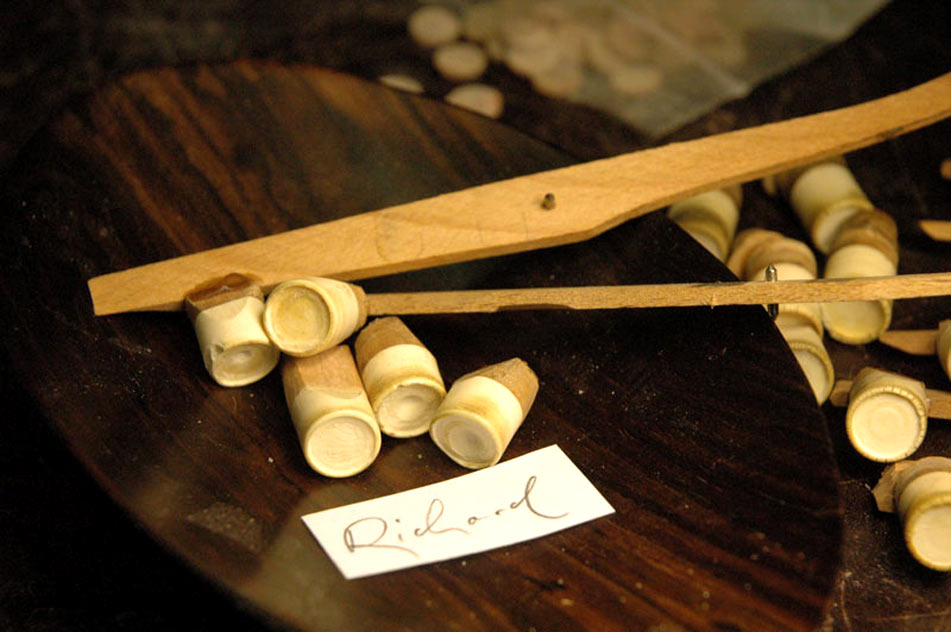

Restaurierung der originalknöpfe
restoration of the original buttons

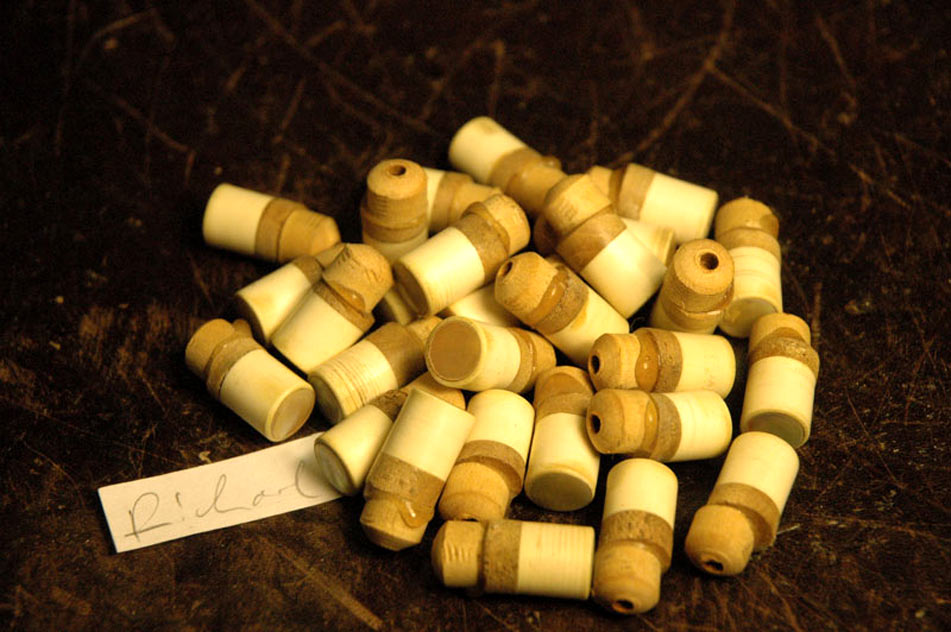

Restaurierung der Originalknöpfe
restoration of the original buttons
AA - Alfred Arnold - 152 -130508 - "Richard"

Tonumfang / tone range / rango / tonalité / gamma 152-wechseltönig / diatonic / diatónica / diatonique / diatonico

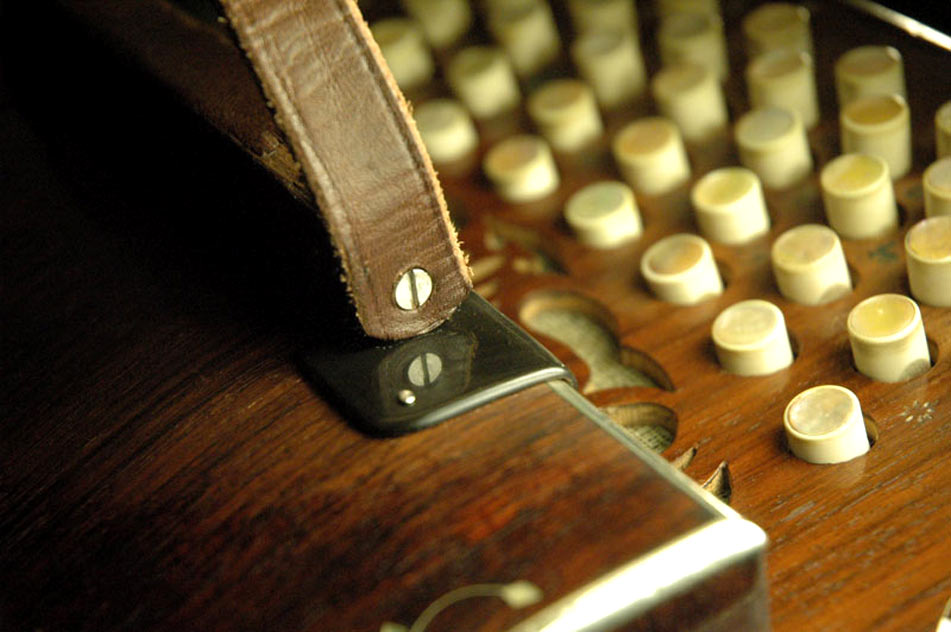

Tastatur / buttons / teclado / boutons / bottoni 36 links / left, 40 rechts / right
Anlage / disposition / disposición / disposition / disposizione rheinisch (Argentinisch)
Stimmung Diskant / treble / derecha / droite / mano destra original 2-chörig-oktav / II/II octave
Stimmung Baß / bass/ izquierda / basse / mano sinistra original 2-chörig-oktav / II/II octave
Stimmplatten / reed plates/ peines / plaques / piastre zink
Herkunft / origin / origen / origine / origine Re-Import (Argentinien)
Hersteller / producer/ fabricante / fabricant / produttore AA/ Alfred Arnold (Carlsfeld i. Sachsen / Germany)
Bezeichnung / label / denominación / désignation / design. AA / Doble A
Farbe / colour / color / couleur / colore schwarz / black / negro / noir / nero

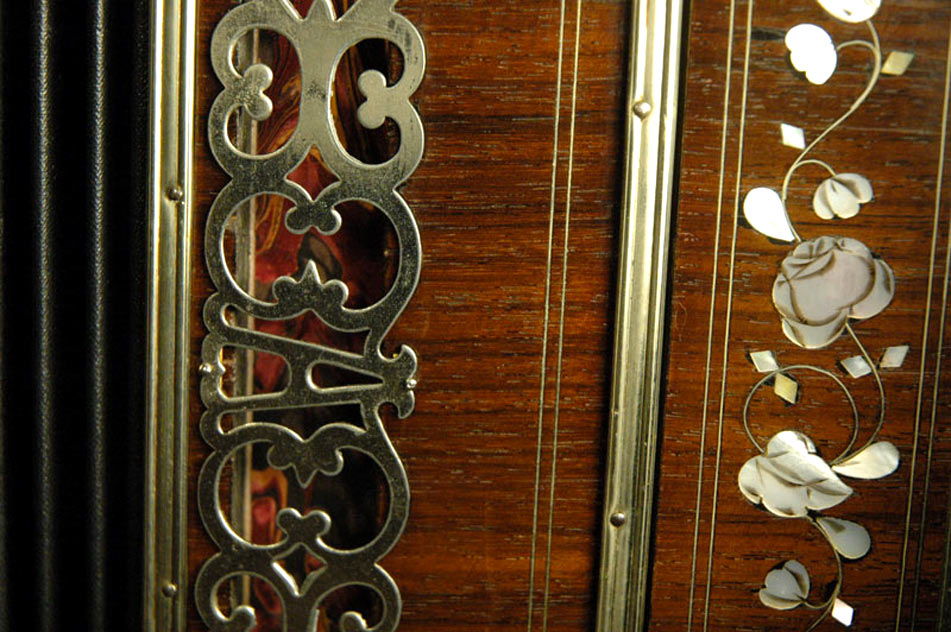

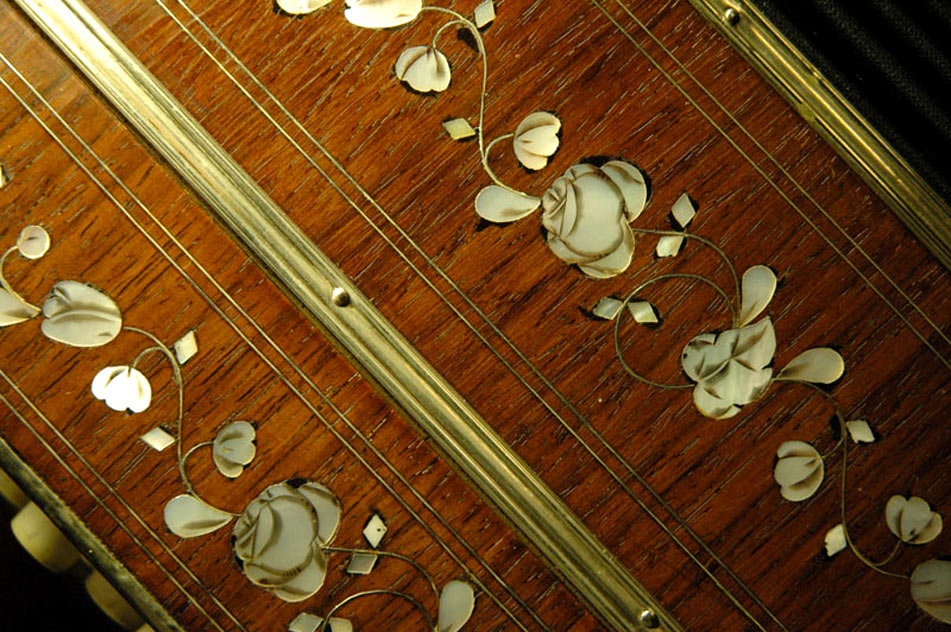

Dekor / decor/ decor / décor / decorazione Volldekor / full mother of pearl / nacarado completo
Produktionsnummer / prod. no. / no. de prod. / no di produzione 25875 gestempelt / stamped / sello / tamponné / timbrato

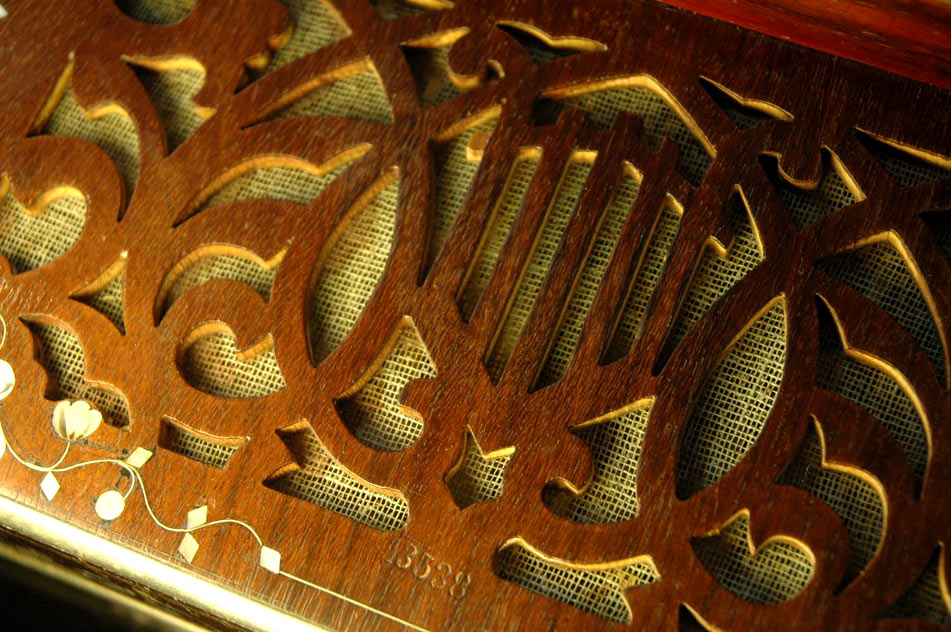

Serien-Nr. / serial-no. / serie en la tapa / série / serie coperchio 13538 Prägestempel / stamped / sello / tamponné / timbrato
Baujahr / year of prod. / año de constr. / année / anno di prod. vor 1933 / before 1933
Besitzer / owner / dueño / propriétaire / proprietario Kundeninstrument / client instr. / cliente / client / cliente
