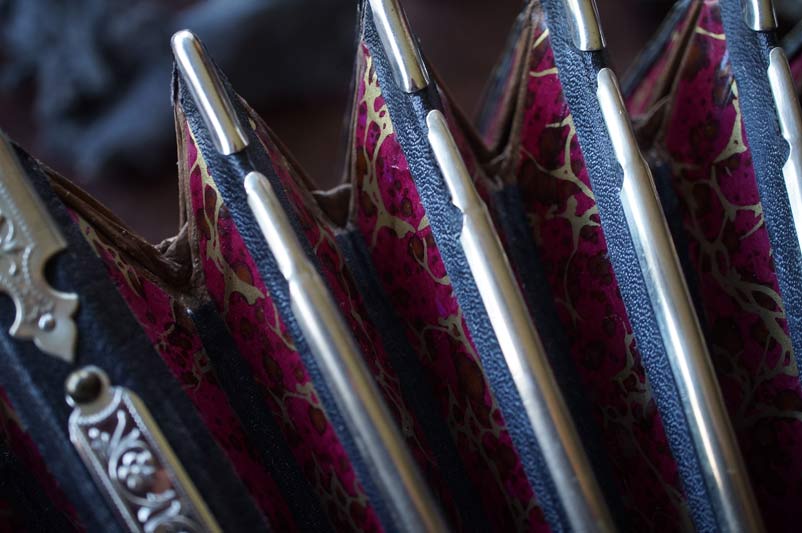

Original Balg eiens AA Bandoneon
Ein defekter Balg
muß nicht immer durch einen neuen ersetzt werden. In der Restaurierung ist das Ziel der maximale Erhalt aller zum Instrument gehörenden Teile. Oft bringt eine Balgrestaurierung ein gutes Ergebnis. Ein Luftverlust addiert sich aus vier möglichen Bereichen: Verlust durch die Mechaniken, die Luftklappe, die Balgrahmen-dichtung und dem Balg. Manchmal ist der Balg gar nicht das Hauptproblem bei hohem Luftverlust.

... siehe auch - Balgrahmendichtung code E03
- Luftklappe code I01
-
Mechanik code B03

Zum Luftverlust kommt der Luftverbrauch. Der Luftverbrauch ist aus bautechnischen Gründen (Stimmplatten) unterschiedlich von Instrument zu Instrument. Auch wird er bedingt durch die Einstellung der Ansprache beim Stimmen und dem Zustand der Stimmplattenventile.

... siehe auch Artikel "Luftverlust und Luftverbrauch"
... siehe auch "Komplettstimmung und Lederventile (code N)"

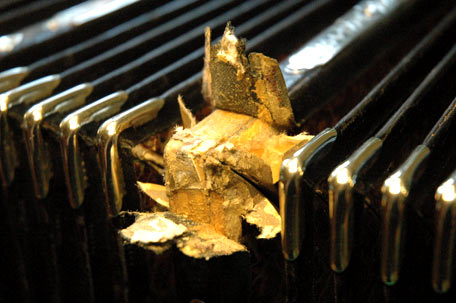

Teilersatz von Lederecken an einem AA-Balg
Teilersatz von Lederecken an einem AA-Balg
Partial replacement of leather corners on an AA bellow


Defect bellow
is not always necessary to replace for a new one. In restoration, I always try to keep the maximum of all original parts of the historic instrument. A bellow restoration sometimes bring a good result. Air loss adds up from four possible areas: Air loss through the mechanics, the main air valve, the main gasket and the bellow. Sometimes the bellow is not the main problem with high air loss.


... see also - Main gasket (E03)
- main Valve (I01)
- mechanics (B03)

In addition to airloss comes the air consumption. Air consumption varies from instrument to instrument due to constructional reasons (reedsplates). Another factor for the air consumption is the adjustment of the reed response and the state of the reedplate valves.

... see the article "Air loss and air consumption"
... see also "Complete tuning and leather valves (code N)"

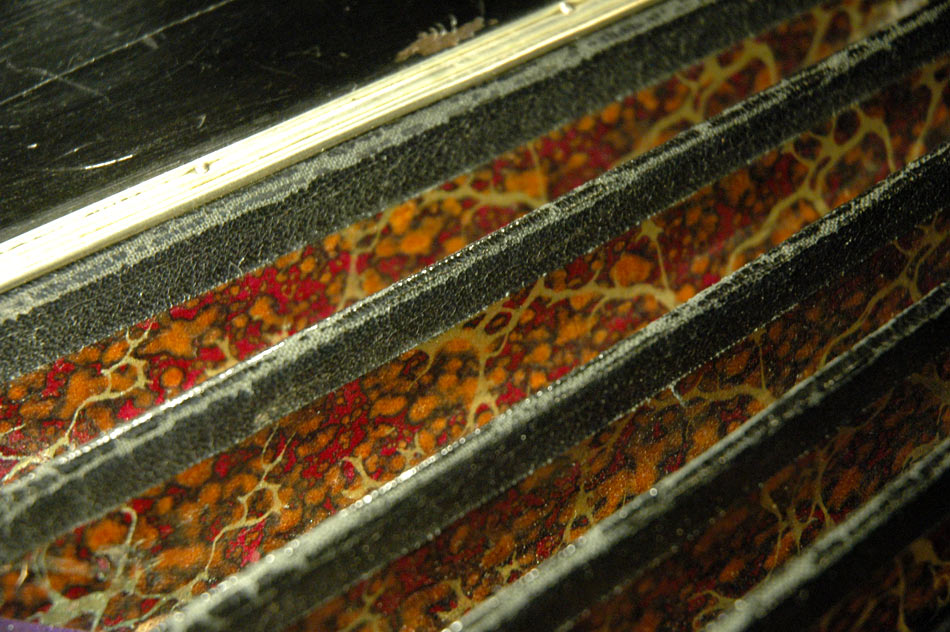

Typisches Schmuckpapier an einem Balg
Typisches Schmuckpapier. Leider wird dieses Papier in seiner Art nicht mehr hergestellt ... siehe Artikel "Die klassischen Schmuckpapiere"
Typical decorative paper of the time. Unfortunately, this paper is no longer produced in its kind ... see also "The classic Bandoneon papers"

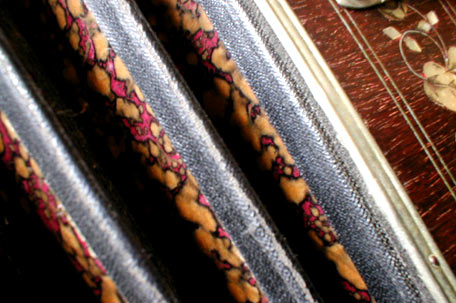

Originalpapier
Originalpapier der frühen 20er-Jahre in einem AA / Premier
Original paper of the early 1920s in an AA / Premier

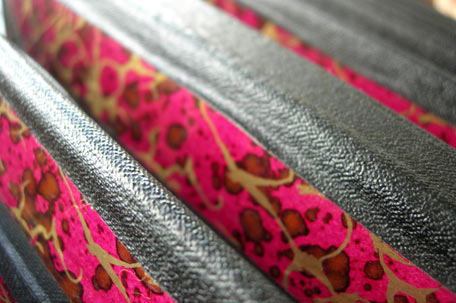

Typisches Papier der Instrumente von Alfred Arnold
Typisches Papier der Instrumente von Alfred Arnold ab ca. 1935
Typical paper of the instruments from Alfred Arnold from 1935 on
Code K Balgrestaurierung
Code K Bellow restoration
restauración del fuelle
restauration du sufflet
restaurazione del mantice

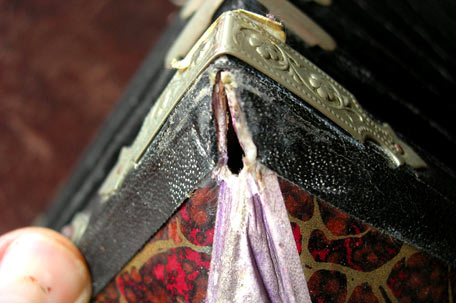

Löcher in Lederecken dichten
Code K11 Löcher in Lederecken dichten
tighten holes in leathers

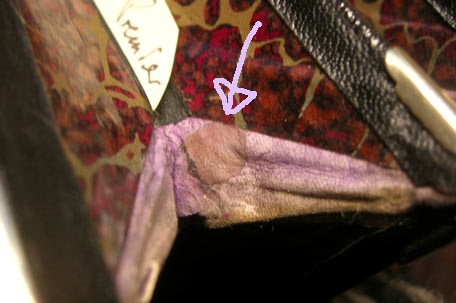

Löcher in Ecken mit Leder dichten
Code K11 Löcher in Lederecken dichten
tighten holes in leathers

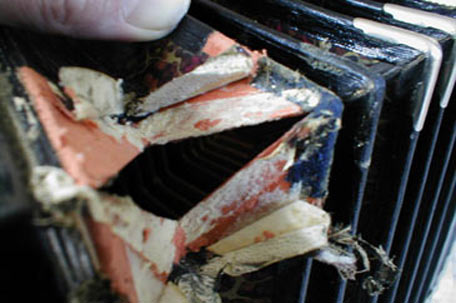

Ersatz einzelner Lederecken
Code K12 Ersatz einzelner Lederecken
new protection linnreplace of single leathers

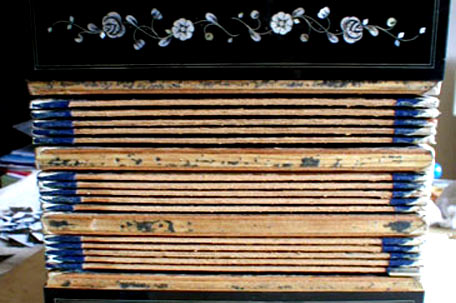

Neues Schutzleinen außen
Code K13 Neues Schutzleinen außen
new protection linnen outside

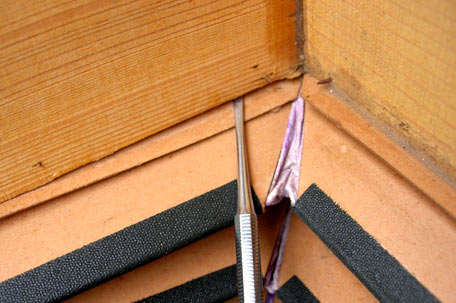

Sichern der Leimverbindungen an den Balgrahmen
Code K20 Sichern der Leimverbindungen an den Balgrahmen
saving of the glue connections at the bellowframes

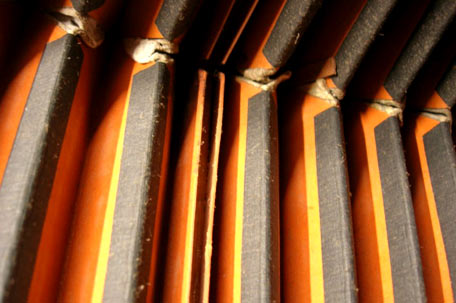

Sichern der Leimverbindungen an den inneren Balgrahmen
Code K20 Sichern der Leimverbindungen an den Balgrahmen (innen)
saving of the connections at the bellowframes (inside)

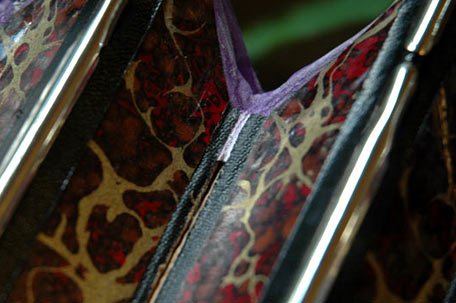

Grundsubstanz gebrochen
Grundsubstanz gebrochen. Hier muß ein neuer Balg gefertigt werden
Basic substance broken. A new bellow must be manufactured here
... siehe auch "Balgbau"
... see also "new bellows"

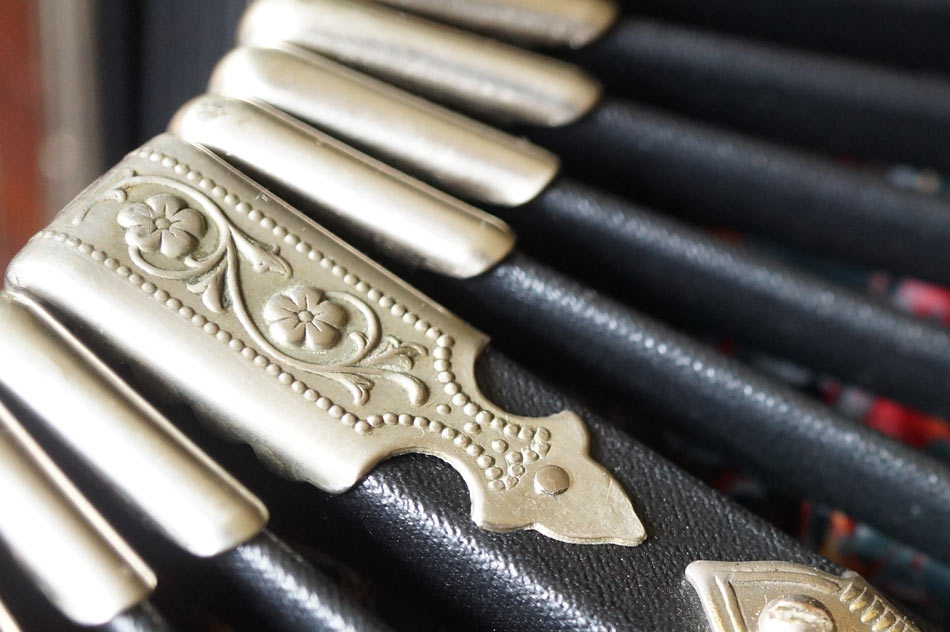

Silberecken an einem neuen Balg
Detailliertes Angebot
Vor einem Restaurierungsauftrag erstelle ich nach Begutachtung ein schriftliches und detailliertes Angebot. Dieses detaillierte Angebot bietet 3 Optionen:

1) Minimum / Notwendige Reparaturen
2) Medium / Empfohlene Restaurierungen
3) Maximum / Maximale Revision

Einzelne Restaurierungsergebnisse werden vorab transparent dargestellt. Dazu habe ich die Arbeiten an einem Bandoneon katalogisiert und mit Nummern (Codes) versehen. Kosten und Dauer der 3 Optionen werden vorab festgelegt. 5 Jahre Garantie auf meine Restaurierungsarbeiten ... siehe AGB
Detailed offer
Before a restoration order, I will prepare a written and detailed offer after inspection. This offers 3 options: 1 "Necessary repairs", 2 "Recommended restorations" and 3 "Maximum revision". Individual restoration results are displayed transparently in advance (see also codes). The cost and duration of the 3 options are set in advance. 5 year warranty on my restoration work ... see business conditions


Oferta escrita y detallada
Antes de una orden de restauración, prepararé una oferta escrita y detallada después de la revisión. Esta oferta detallada ofrece 3 opciones: 1 "reparaciones necesarias", 2 "restauraciones recomendadas" y 3 "revisión máxima". Los resultados de restauración individuales se muestran de forma transparente por adelantado (ver también los códigos). El costo y la duración de las 3 opciones se establecen por adelantado. 5 años de garantía en mi trabajo de restauración ... ver cond. generales


Offre écrite et détaillée
Avant une commande de restauration, je préparerai une offre écrite et détaillée après inspection. Cette offre détaillée offre 3 options: 1 "Réparations nécessaires", 2 "Restaurations recommandées" et 3 "Révision maximum". Les résultats de la restauration individuelle sont affichés de manière transparente à l'avance (voir aussi les codes). Le coût et la durée des 3 options sont définis à l'avance. Garantie de 5 ans sur mes travaux de restauration ... voir conditions génerál


Offerta scritta e dettagliata
Prima di un ordine di restauro, preparerò un'offerta scritta e dettagliata dopo l'ispezione. Questa offerta dettagliata offre 3 opzioni: 1 "Riparazioni necessarie", 2 "Restauri consigliati" e 3 "Revisione massima". I risultati del restauro individuale vengono visualizzati in modo trasparente in anticipo (vedere anche i codici). Il costo e la durata delle 3 opzioni sono impostati in anticipo. 5 anni di garanzia sui miei lavori di restauro ... vedi conditioni generali
Restaurierungs-Codes restoration codes códicos de restauración codes de restauracion codici de restauro
A Allgemein A in general A en general A géneralément A in genere
B Mechanik B mechanism B mecanismo B mécanisme B meccanismo
C Montierboden C mounting board C base de montaje C table de la montage C fondello della meccan.
D Tastatur (Knöpfe) D keyboard (buttons) D teclado (botones) D clavier (boutons) D tastiera (bottones)
E Balgrahmen E bellow frame E marcos de fuelle E cadres du sufflet E telaio del mantice
F Gehäusedeckel F housing F tapa F couvercle F coperchie
G Brummkasten (Baß) G baffle (bass) G caja de resonancia (izqu.) G caisse de réson. (basse) G cassetta (sinistra)
H Griffe H handles H manijas H poignées H maniglie
I Luftklappe I valve I válvula I soupape I valvola
J Lufthebel J valve lever J palanca de aire J levier de soupape J leva per la valvola
K Balg K bellow K fuelle K soufflet K mantice
L Kanzellen L reed chambers L soportes de peines L chambres L camere (canali)
M Stimmpl., Zungen & Ventile M plates, reeds, valves M peines, lengüetas & válvulas M plaques, l´anches & peaus M piastre, ancie & valvole
N Stimmung (Intonation) N tuning (intonation) N afinación (entonación) N accordage (intonation) N accordatura (intonaz.)
P Oberflächen P surfaces P superficie P surfaces P superficie
5 Jahre Garantie auf meine Restaurierungsarbeiten (siehe AGB) 5 year warranty on my restoration work (see business condit.)
5 años de garantía en mi trabajo de restauración (ver cond. gen.)
5 ans de garantie sur mes travaux de restauration (voir cond. gén.)
5 anni di garanzia sui miei lavori di restauro (vedi condizioni generali)
